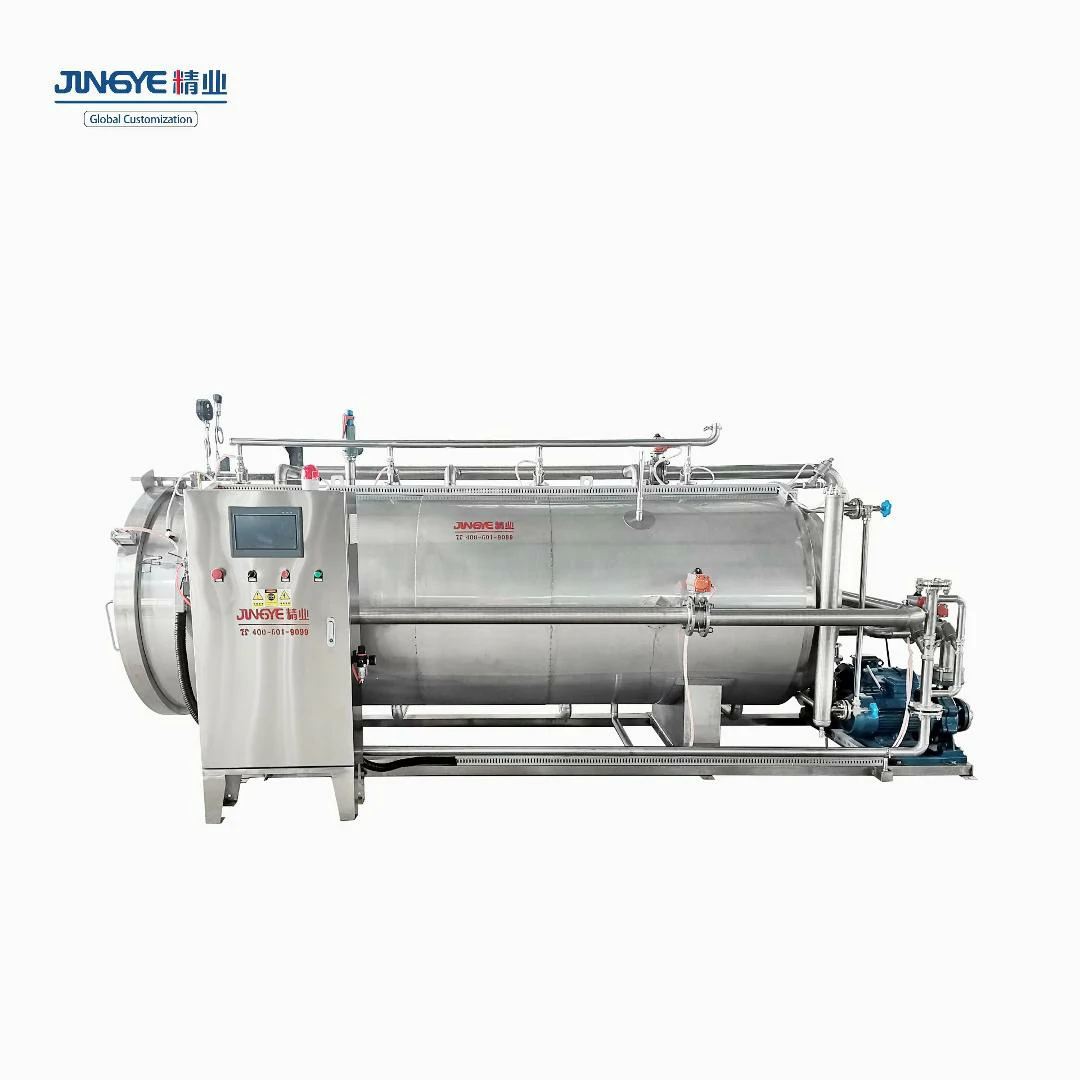

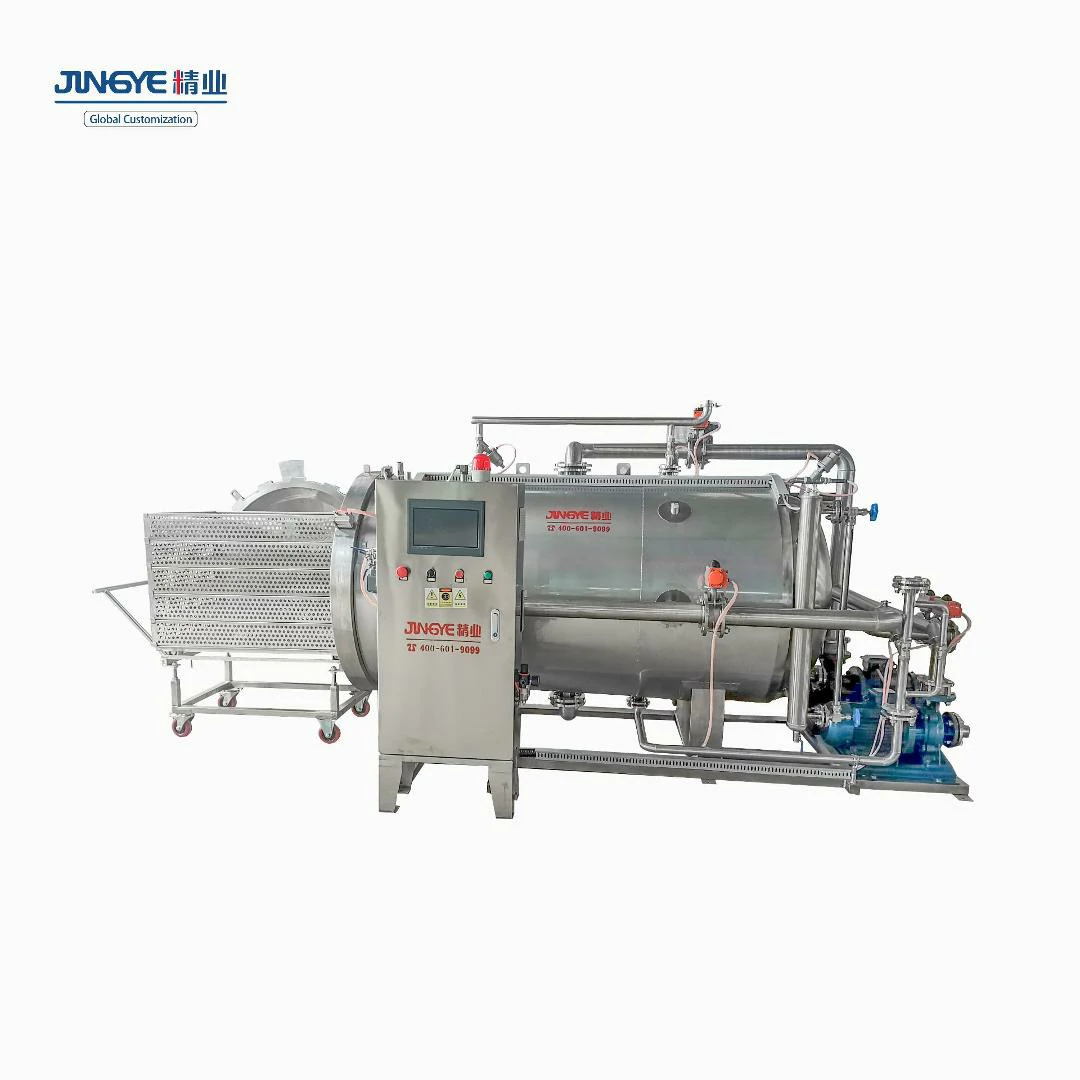

Steam sterilization retort

Features :

Material : SUS 304/316 material is used, which is beautiful and durable, smooth and easy to clean.

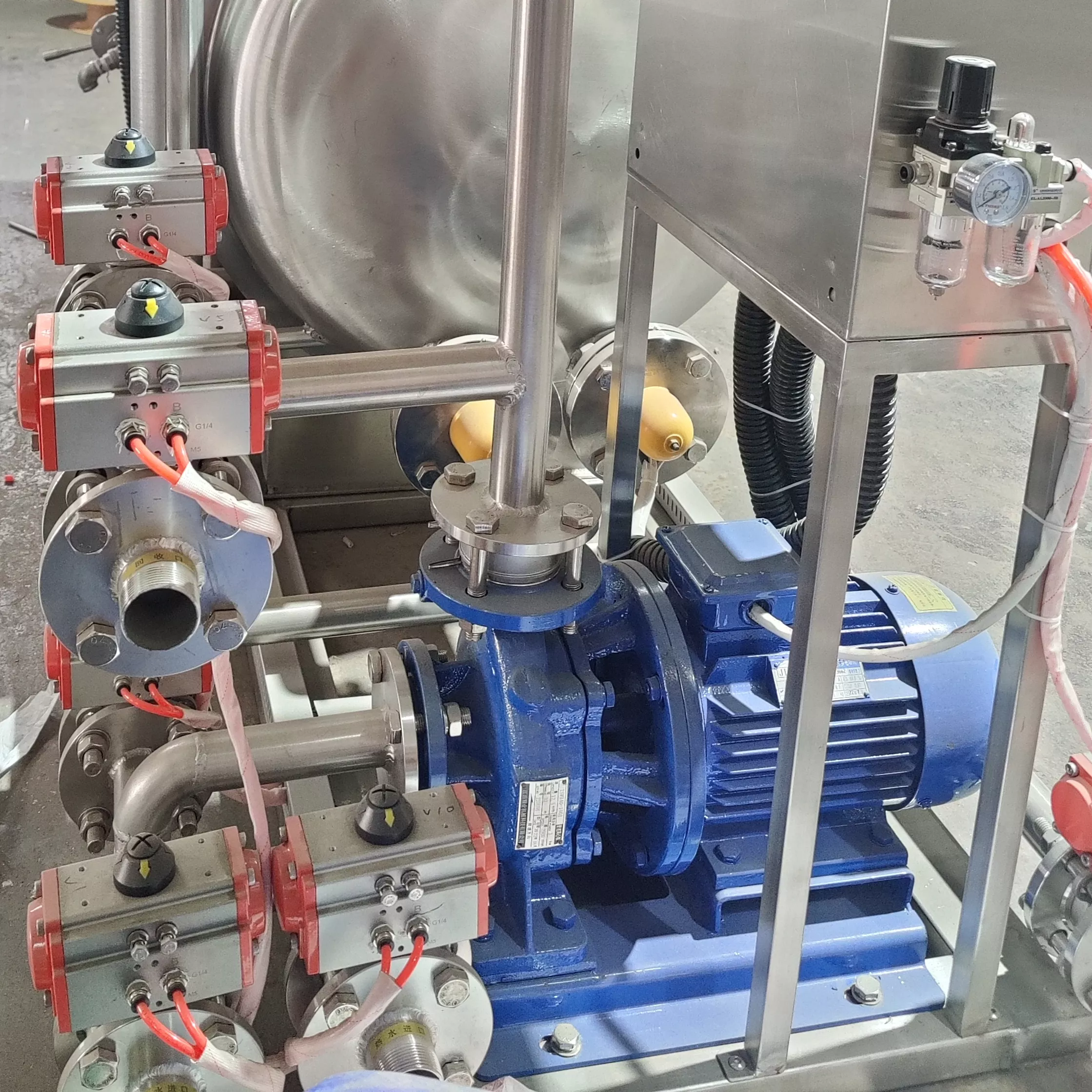

Composition : It is mainly composed of sterilization tank, water inlet and outlet pipes, heating system, PLC control system and water storage tank.

Function : PLC programming intelligent control system automatically sterilizes and realizes standardized batch production.

Safety : The system is equipped with fault self-checking supervision measurement module and misoperation safety alarm module

Operation : The feeding and discharging adopts frame structure, which is easy to operate

Others : The equipment size and function configuration can be freely customized according to customer needs. If there is any problem with the whole machine accessories within one year, the company will replace it free of charge.

Whatapp：+86 181 7003 7990

Email: aloe@cnjymachine.com

Steam sterilization retort

Applications

Vertical steam sterilizer is mainly used for high temperature sterilization of meat products, egg products, dairy products, bone broth, beverages and pet food to extend the shelf life of food.

Features

Made of food grade 304/316 material, fully automatic control by PLC+touch screen programming, optional electric heating/steam heating, automatic control of sterilization process, quickly kills bacteria, viruses and other microorganisms through high temperature and high pressure steam.

Applications

Model	Volume (L)	Diameter （mm）	Heating method	Sterilization frame (set)	Dimensions （mm）
SCG-0712	0.5m³	Φ700*1200	Z-steam/D-electric	2	145018501550
SCG-0918	1.2m³	Φ900*1800	Z-steam/D-electric	2	165020501750
SCG-1024	2.0m³	Φ1000*2400	Z-steam	3	185022501980
SCG-1236	4.3m³	Φ1200*3600	Z-steam	4	205024502250

SCG-1340

5.3m³

Φ1300*4000

Z-steam

2150*2650*2350
