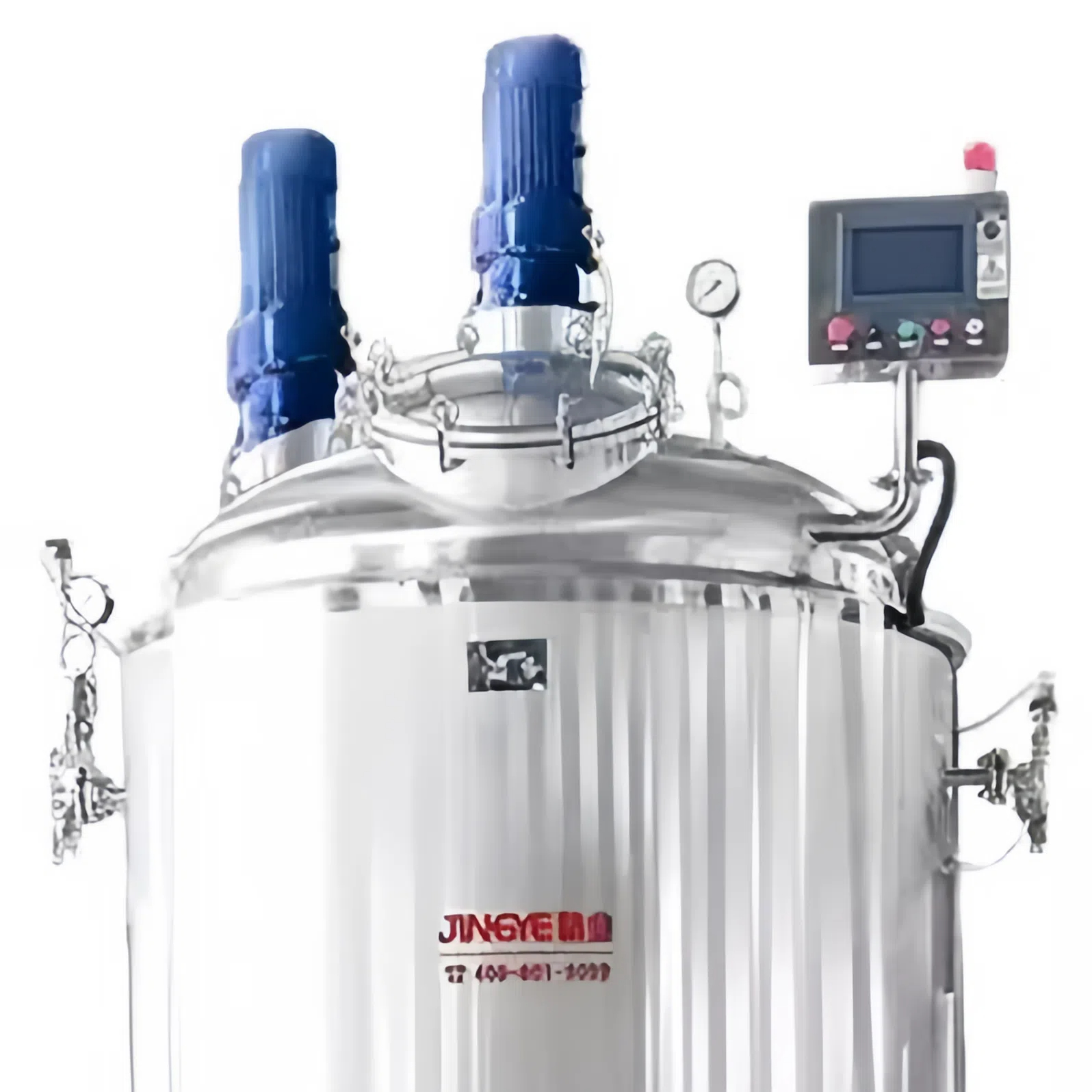

Chickpea paste cooking emulsification mixing tank

Applications

Vertical sealed emulsifying cooking and mixing tank is mainly used for heating, mixing, cooking, concentrating various high-quality materials, as well as mixing or storing liquid materials such as cosmetics, medicines, chemicals, bioengineering, etc. The emulsifying function makes the materials more delicate and soft.

Features

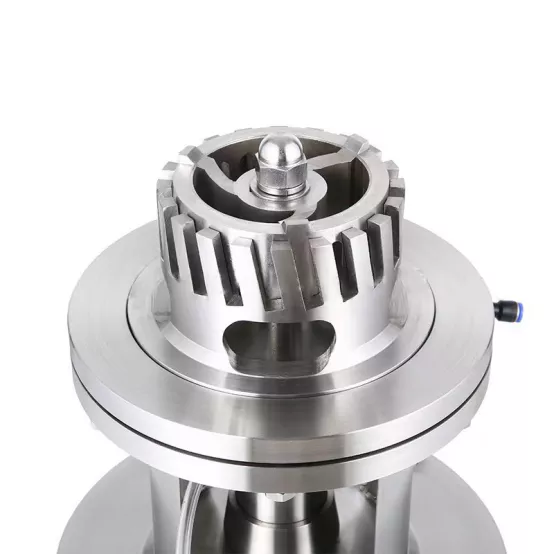

Made of food-grade 304/316 material, PLC + touch screen programming automatic control reduces manual intervention. The emulsifying stirring disperses, mixes and emulsifies the materials within a certain period of time to achieve the ideal effect.

Applications

Model	Volume (L)	Diameter （mm）	Heating power （Kw）	Heating method	Dimensions （mm）
JYH-JCJE-500	500	Φ900*800	2.2	Z-steam/D-electric	135011502250
JYH-JCJE-1000	1000	Φ1100*1000	/	Z-steam/D-electric	155013502450
JYH-JCJE-2000	2000	Φ1300*1500	3	Z-steam	185016502850
JYH-JCJE-3000	3000	Φ1600*1500	/	Z-steam	215019502950
JYH-JCJE-5000	5000	Φ1800*2000	5.5	Z-steam	235021503450
