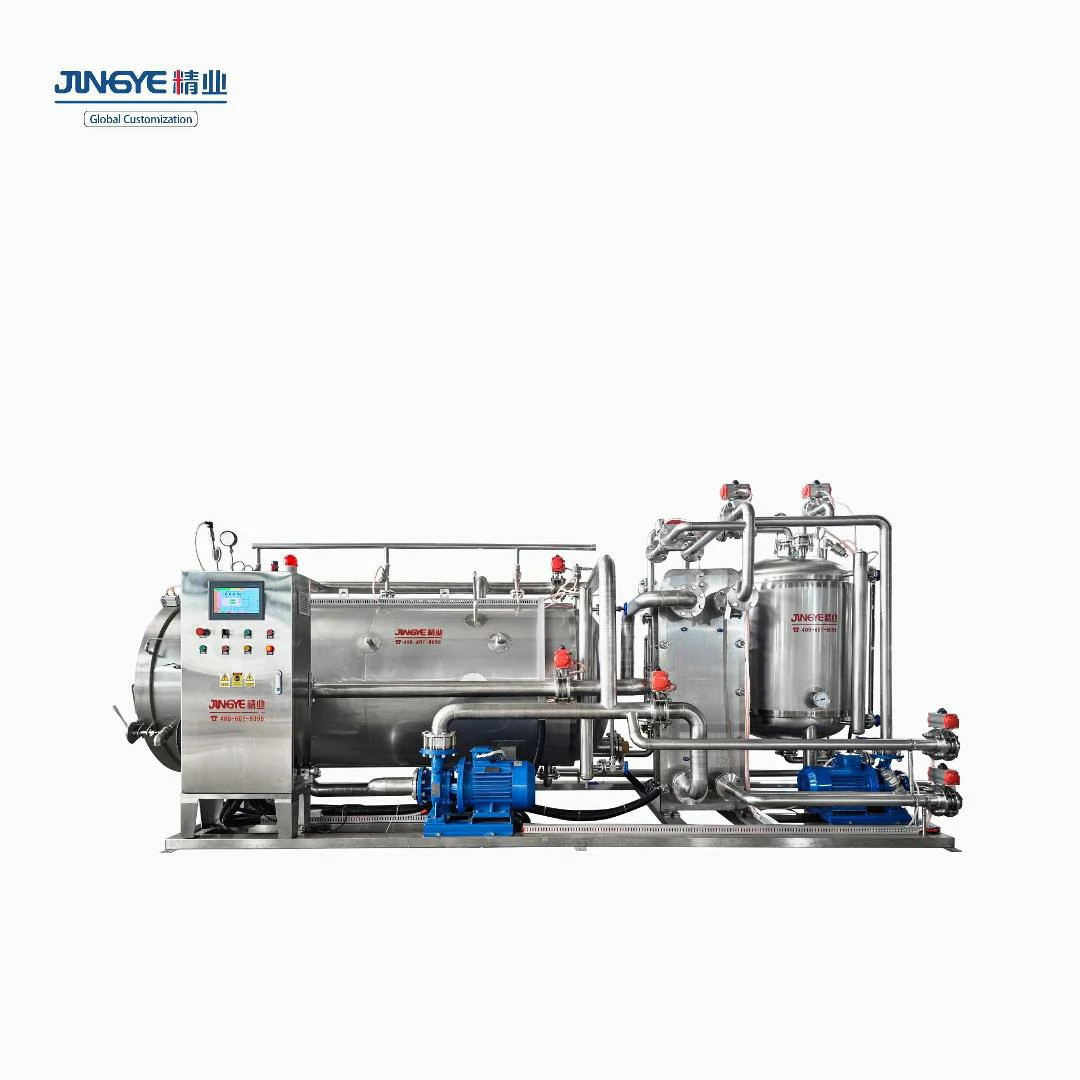

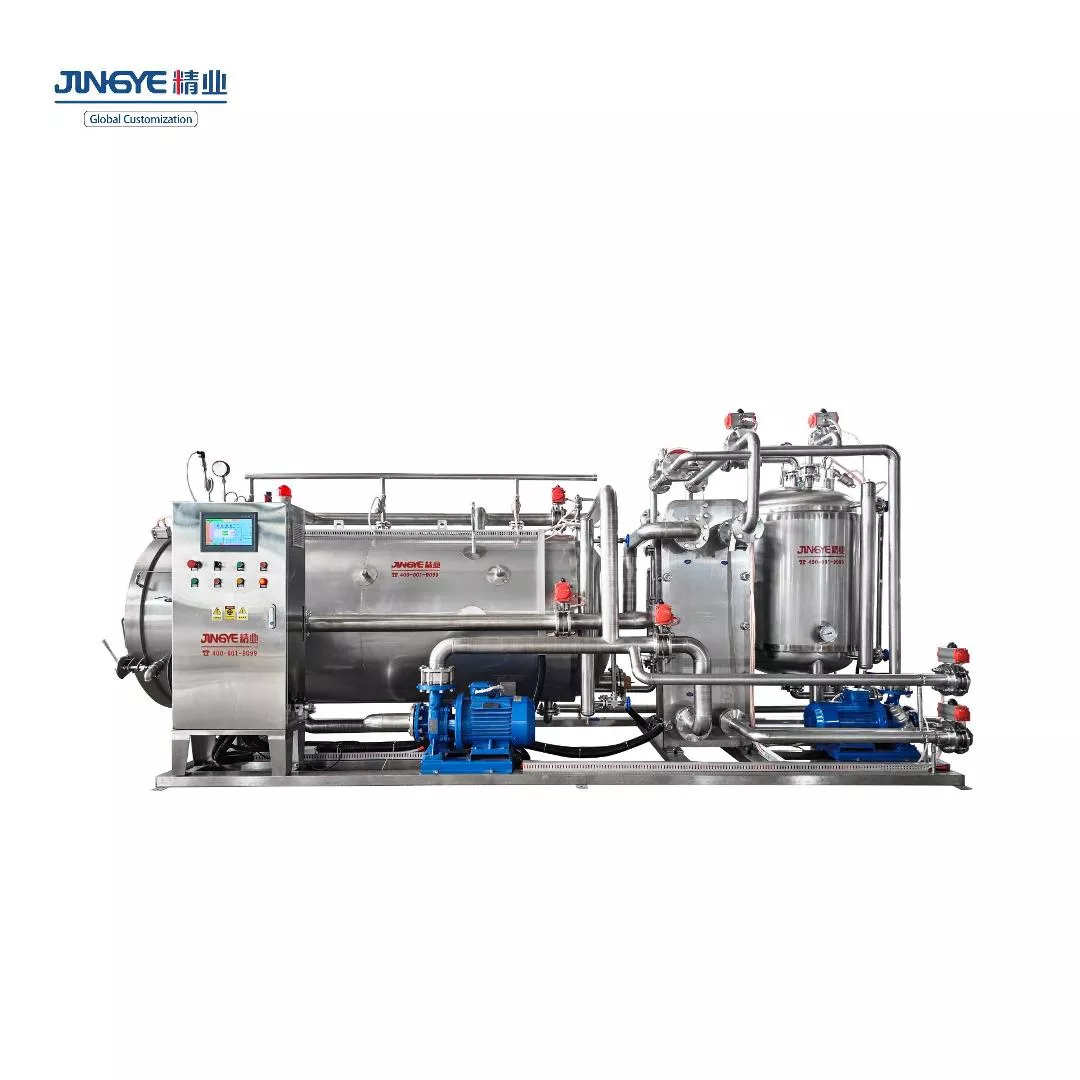

Side spray sterilization retort
Side spray sterilization retort
Side spray sterilization retort
Side spray sterilization retort
Side spray sterilization retort
Side spray sterilization retort
Side spray sterilization retort

Side spray sterilization retort

The pot body part :

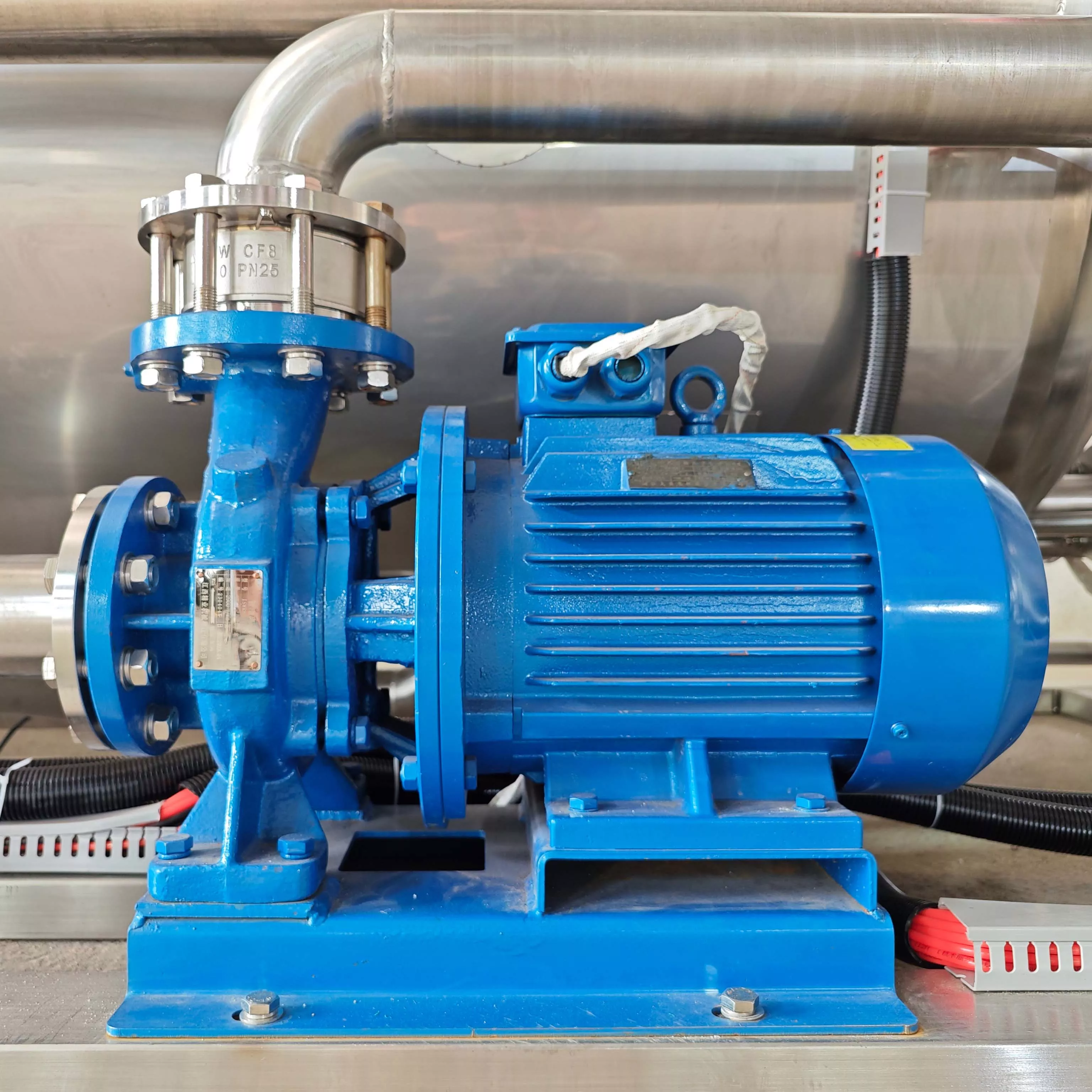

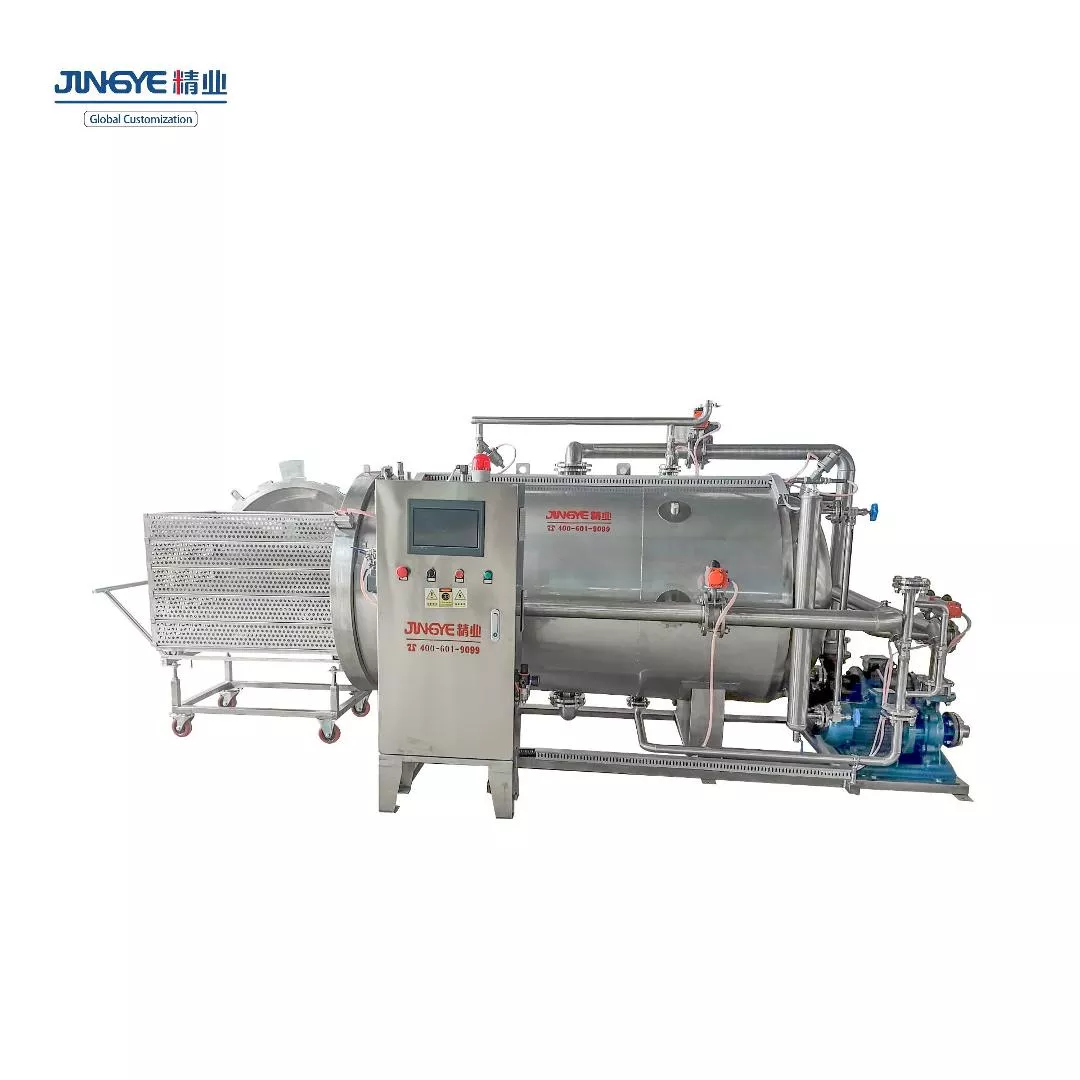

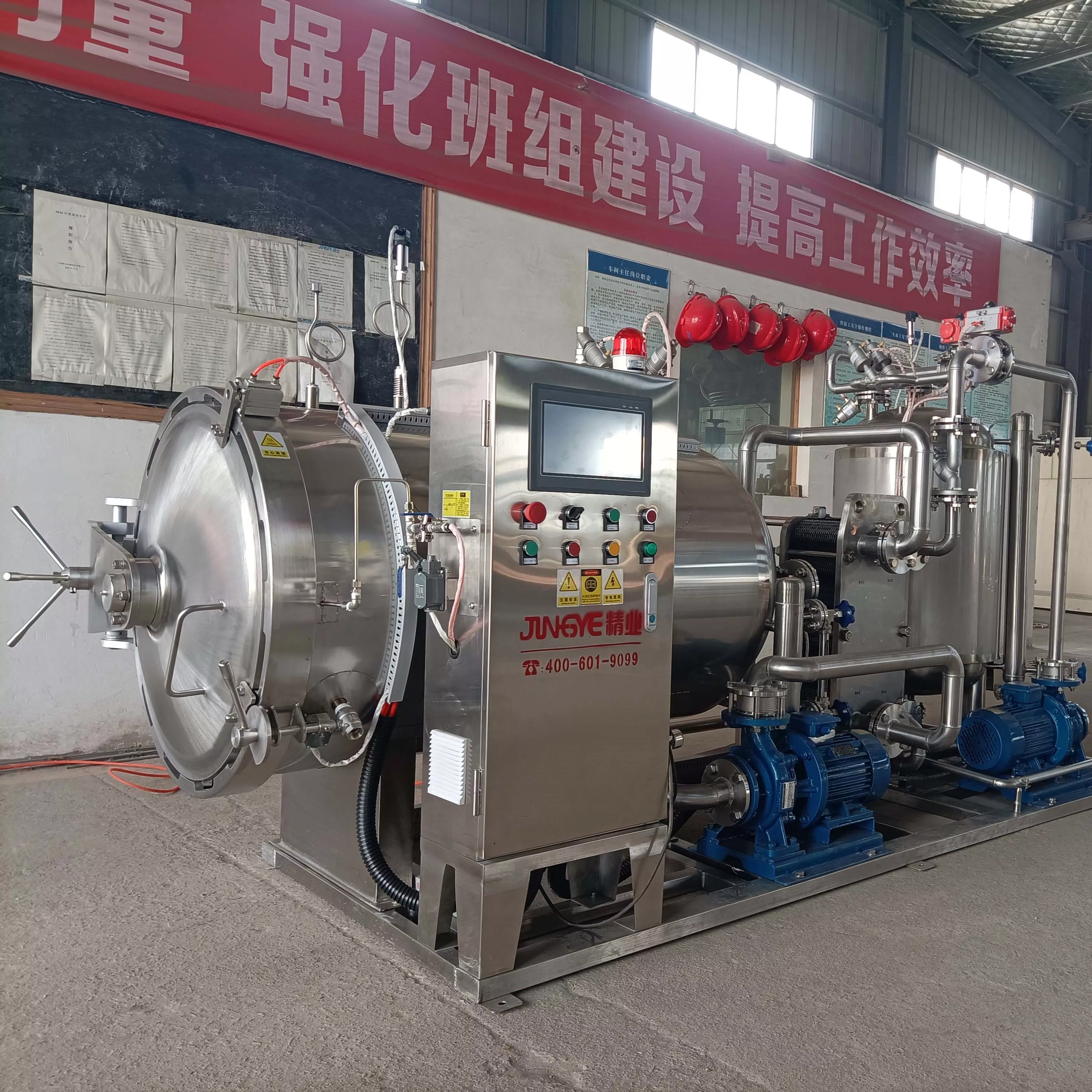

It is composed of a sterilization tank, a hot water tank, a pump and connecting pipes, and a PLC automatic control system. :

Control part :

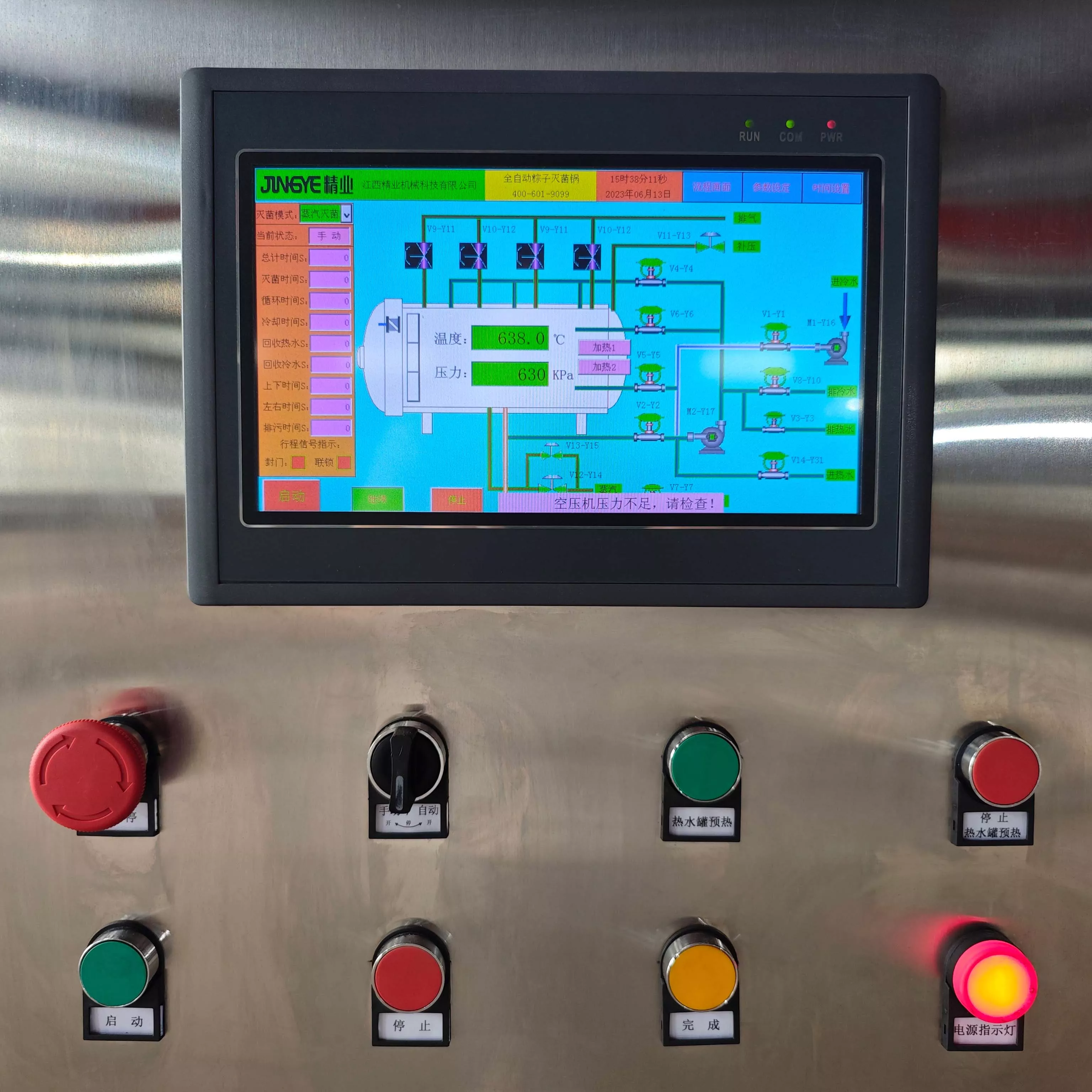

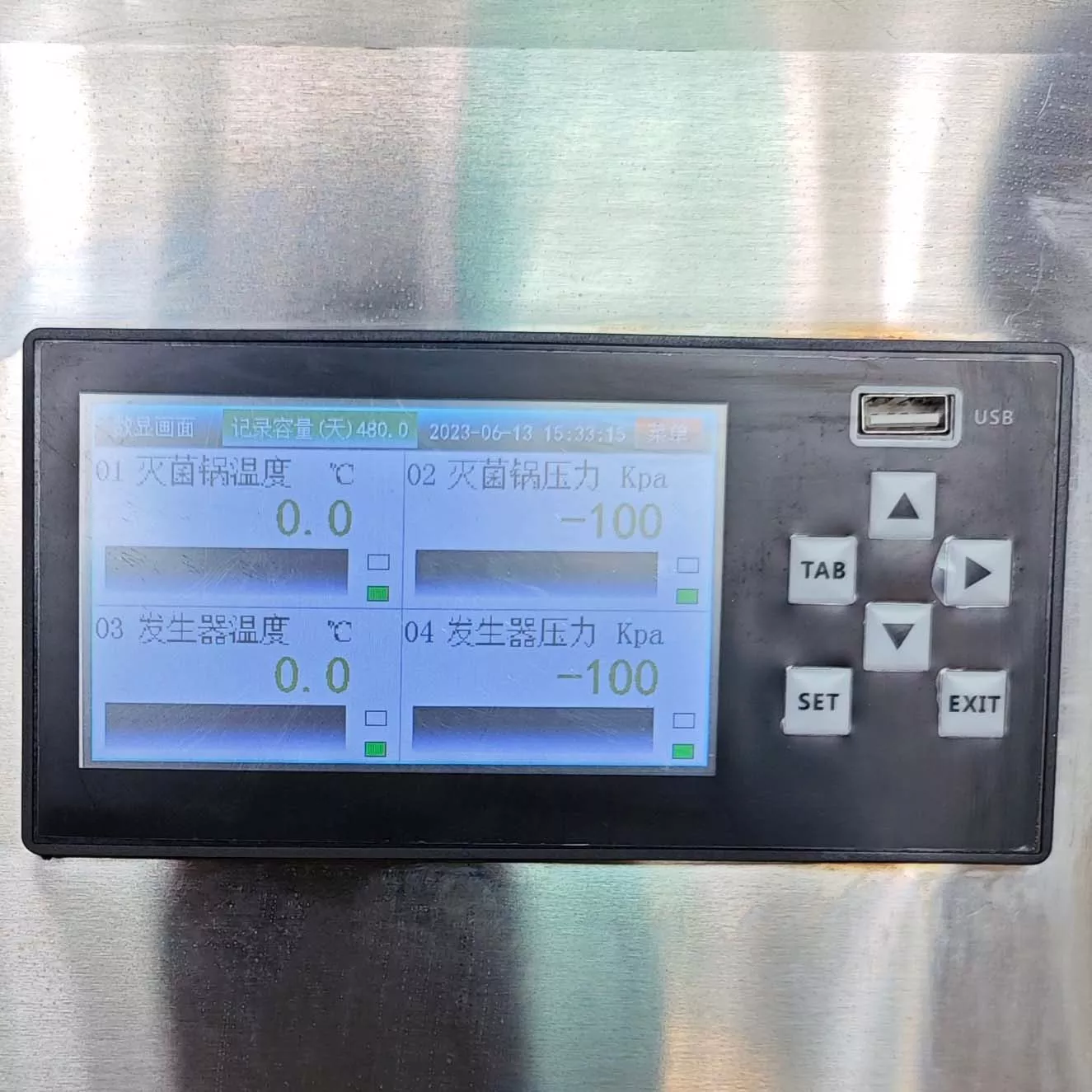

It adopts 10-inch PLC + touch screen programming control to realize one-button start sterilization, intelligent control of sterilization temperature and pressure, and analog sensors and automatic valve control are available for all time periods. A variety of sterilization processes can be pre-saved to save manpower and cumbersome operation procedures. :

Sterilization method :

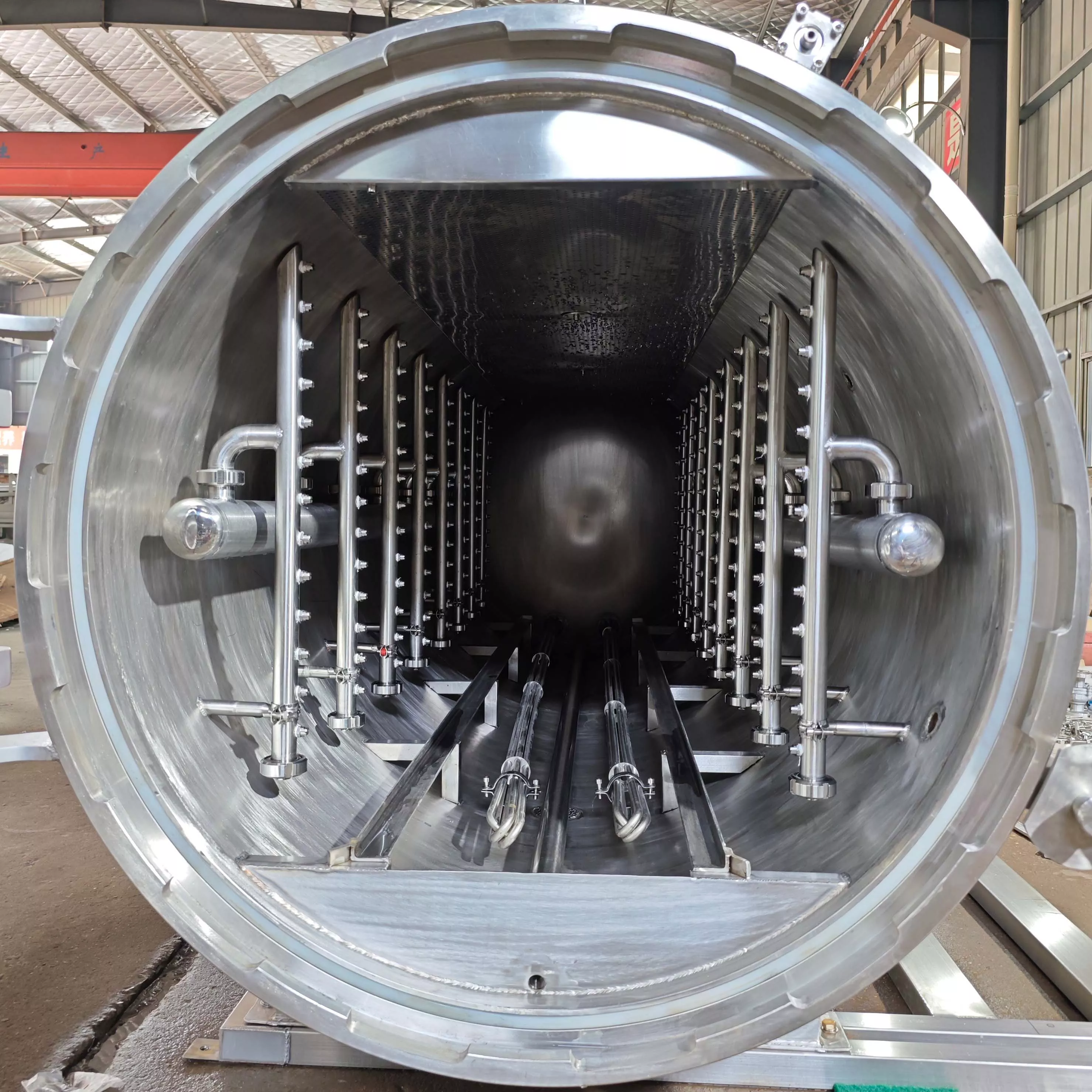

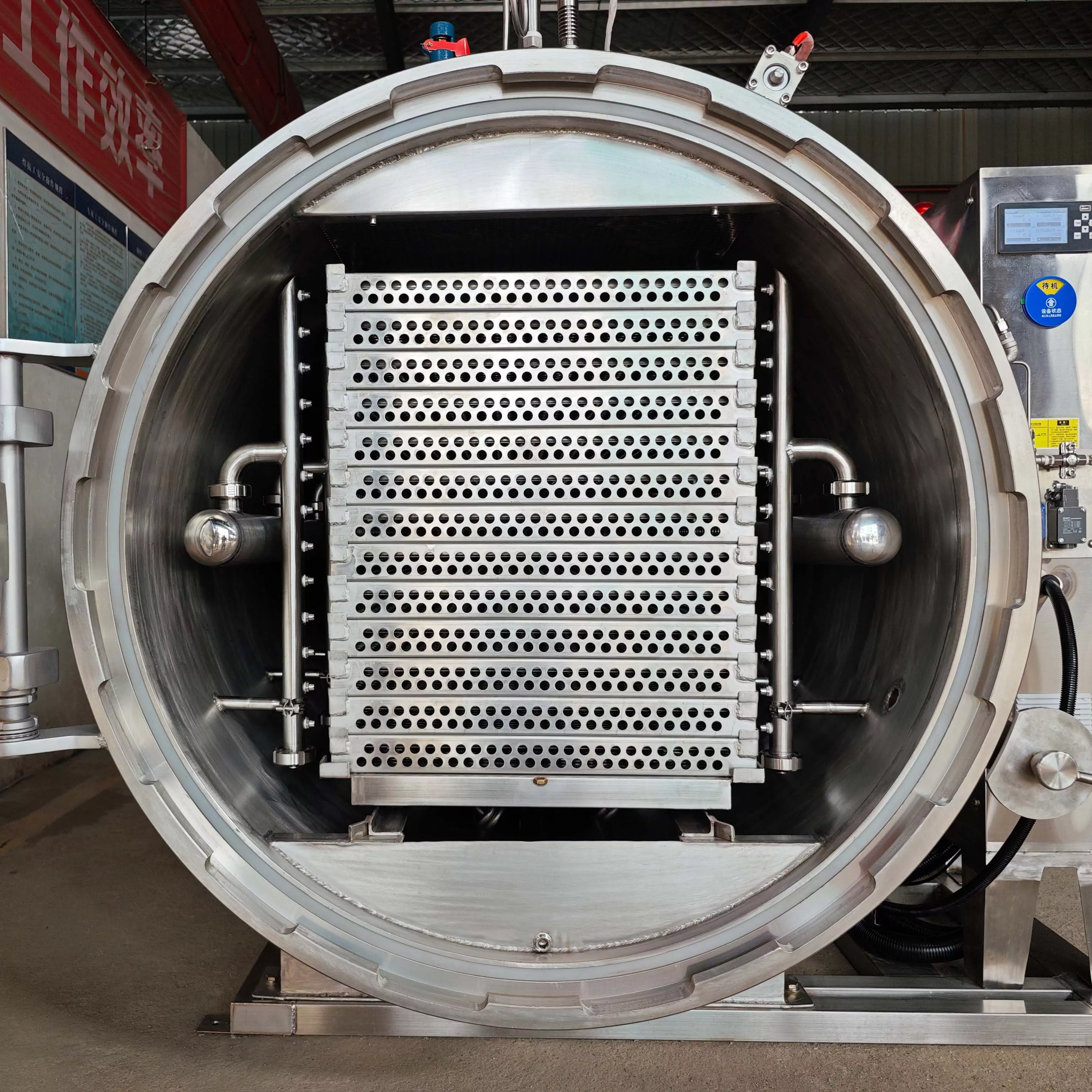

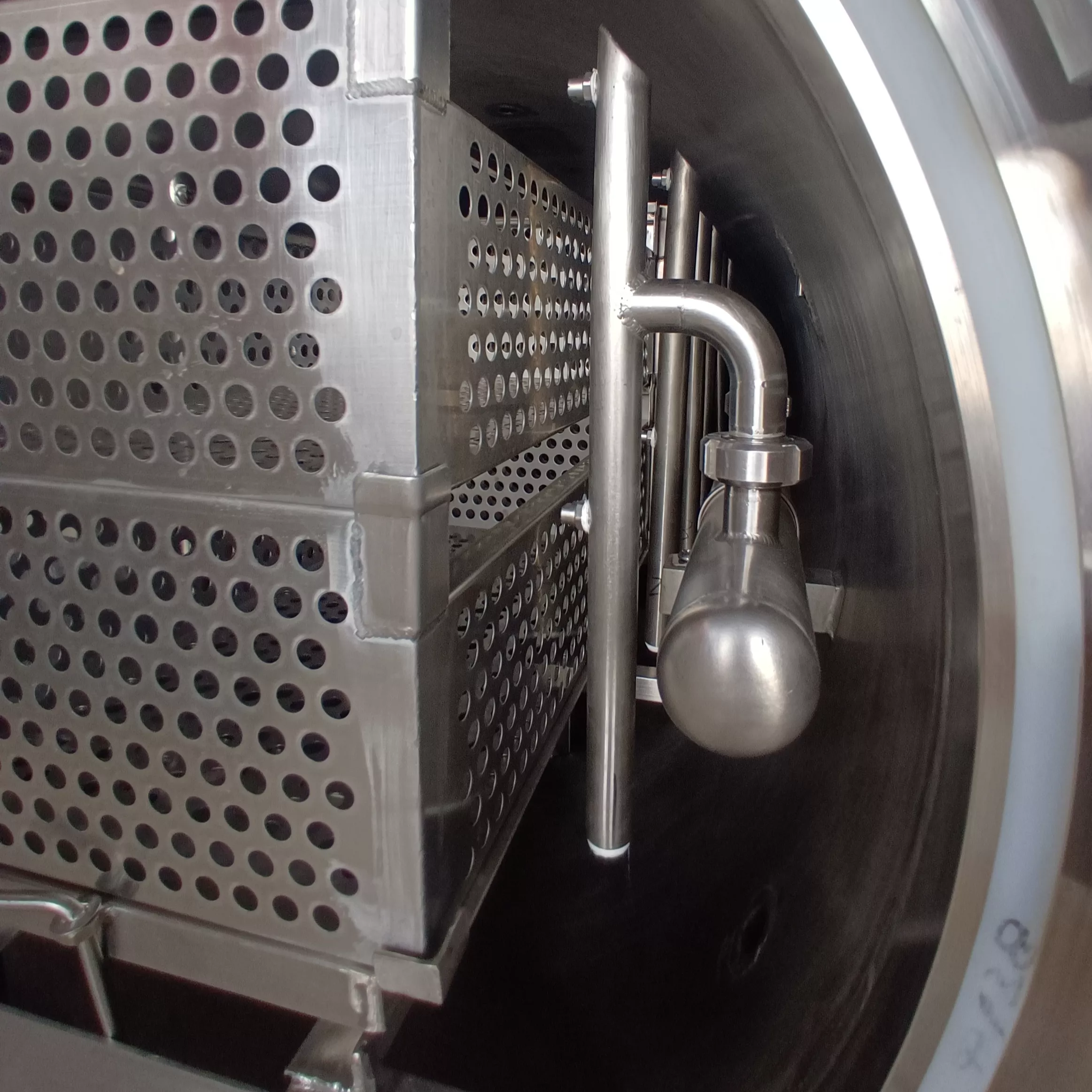

Water bath sterilization, firstly heating the water in the hot water tank to reach the temperature required for sterilization (except for multi-stage sterilization), thereby shortening the operation time and improving work efficiency. The water in the tank is constantly switched up, down, left and right to circulate and sterilize evenly, with uniform temperature and no dead corners. :

Heating method :

Electric/steam heating, which can be matched according to on-site conditions :

Whatapp:+86 181 7003 7990

Email: aloe@cnjymachine.com

Product Details

Side spray sterilization retort

Applications
Suitable for sterilizing a variety of packed food products in composite films, ligated casings, plastic boxes, cans, glass bottles, plastic bags, etc.
Features
Made of food grade 304/316 material, fully automatic control by PLC+touch screen programming, optional electric heating/steam heating, automatic control of sterilization process, quickly kills bacteria, viruses and other microorganisms through high temperature and high pressure steam.
Applications

Model

Volume

(L)

Diameter

mm

Heating method

Sterilization frame (set)

Dimensions

mm

SCG-0712

0.5m³

Φ700*1200

Z-steam/D-electric

2

2350*1350*1350

SCG-0918

1.2m³

Φ900*1800

Z-steam/D-electric

2

3250*1450*1450

SCG-1024

2.0m³

Φ1000*2400

Z-steam

3

3850*1550*1550

SCG-1236

4.3m³

Φ1200*3600

Z-steam

4

5450*1750*1750

SCG-1340

5.3m³

Φ1300*4000

Z-steam

4

5550*1850*1850
