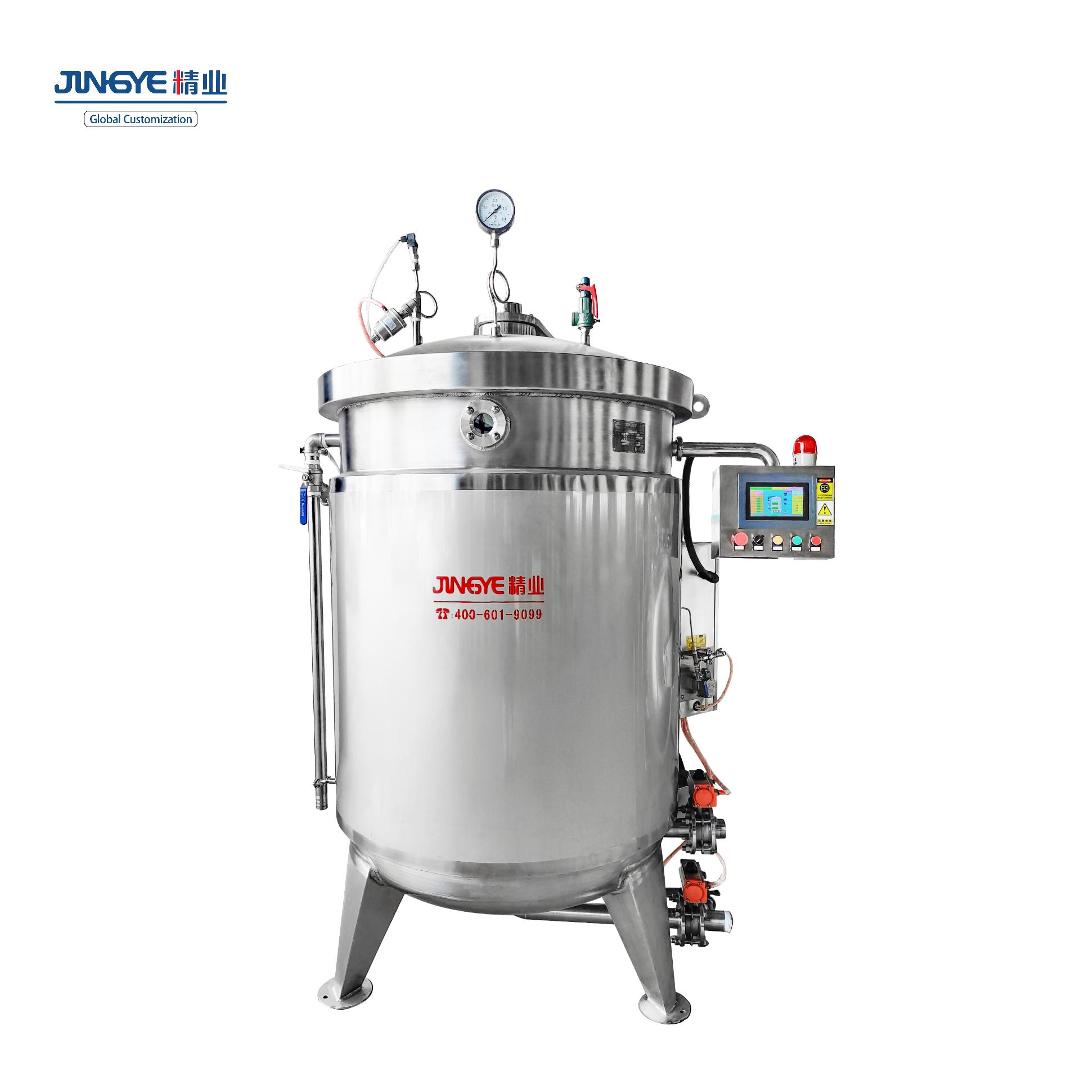

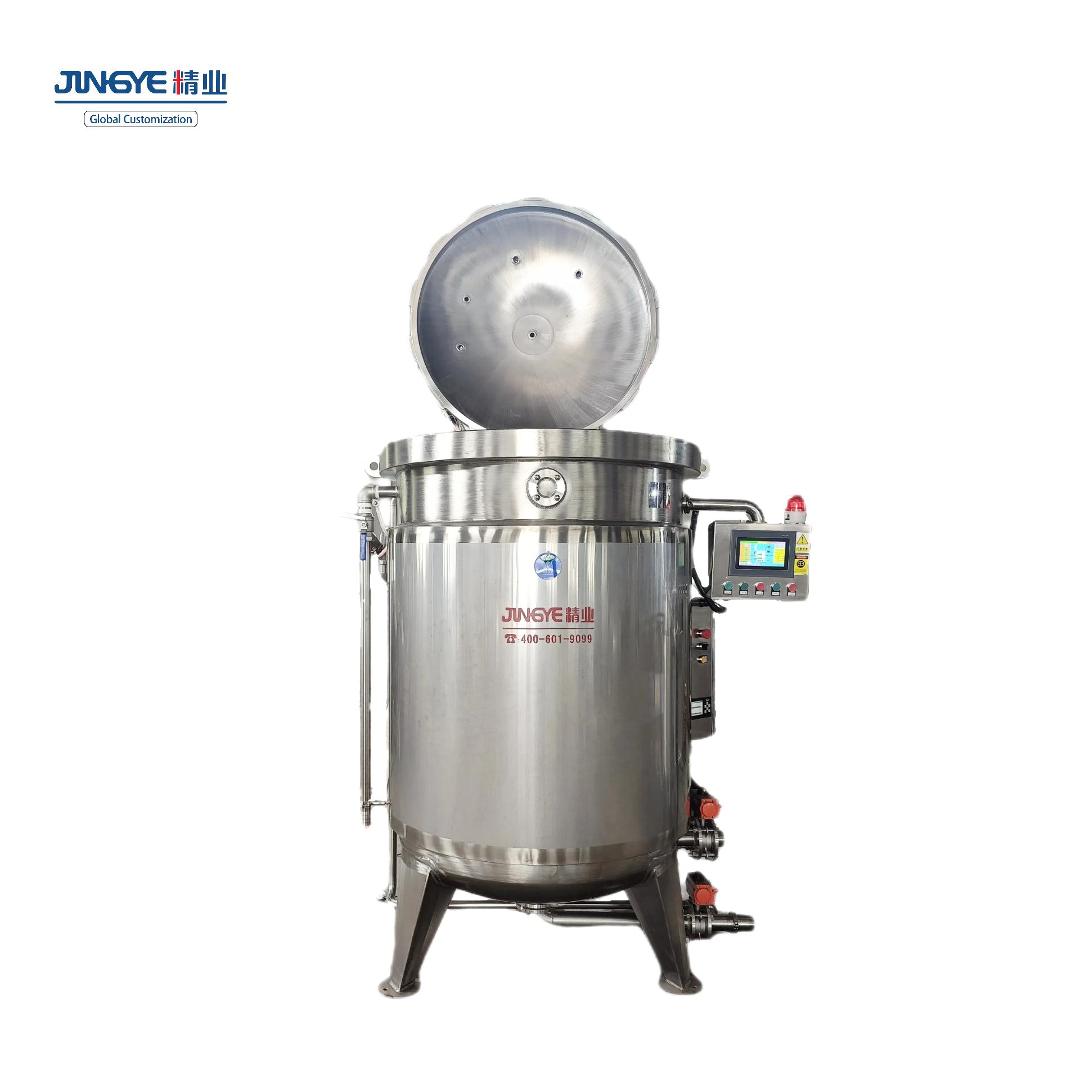

Full Automatic Bone Broth Pressure Cooker

Full Automatic Bone Broth Pressure Cooker

Features :

Material : Made of SUS 304/316, beautiful, durable, smooth and easy to clean.

Composition : Mainly composed of pot body, water inlet and outlet pipes, heating system, PLC control system, and cooking rack.

Function : PLC intelligent control, one-button intelligent cooking, ultra-low pressure cooking process module, to achieve standardized mass production.

Safety : The system has a fault self-checking supervision measurement module and a misoperation safety alarm module

Operation : The frame structure is used for feeding and discharging, which is easy to operate

Others : The equipment size and function configuration can be freely customized according to customer needs. If there is a problem with the whole machine accessories within one year, the company will replace it free of charge.

Whatapp：+86 181 7003 7990

Email: aloe@cnjymachine.com

Full Automatic Bone Broth Pressure Cooker

Applications

The automatic pressure cooking pot for bone soup is mainly used for high-pressure cooking of pig bones, beef bones, chicken bones and other bones to quickly release the rich nutrient medium in the bones, which is very important for cooking thoroughly, extracting, etc.

Features

Made of food grade 304/316 material, PLC+touch screen programming automatic control, electric heating/steam heating optional, ultra-low pressure cooking process is used in the sealed cooking process, the whole process is automatically controlled

Applications

Model	Volume (L)	Diameter （mm）	Heating power （Kw）	Heating method	Dimensions （mm）
JYH-ZLF-250	250	Φ600*800	24	Z-steam/D-electric	165014501650
JYH-ZLF-500	500	Φ800*1000	36	Z-steam/D-electric	185016501850
JYH-ZLF-1000	1000	Φ1000*1200	60	Z-steam	205018502250
JYH-ZLF-1500	1500	Φ1200*1500	/	Z-steam	205018502250
JYH-ZLF-2000	2000	Φ1300*1500	/	Z-steam	215019502350
