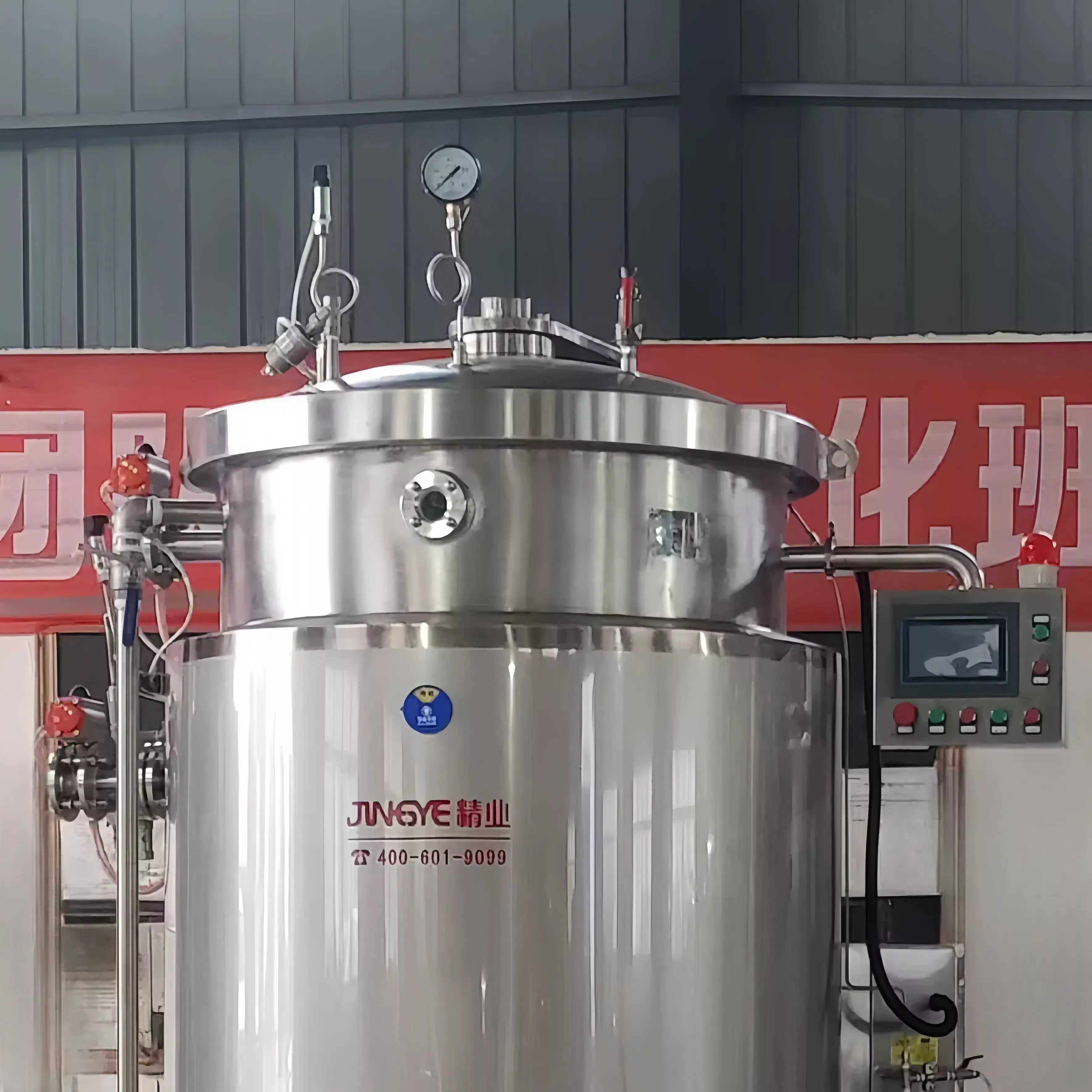

Vacuum sealed pressure cooker with agitator

Vacuum sealed pressure cooker with agitator

Features :

Material : SUS 304/316 material is used, which is beautiful and durable, smooth and easy to clean.

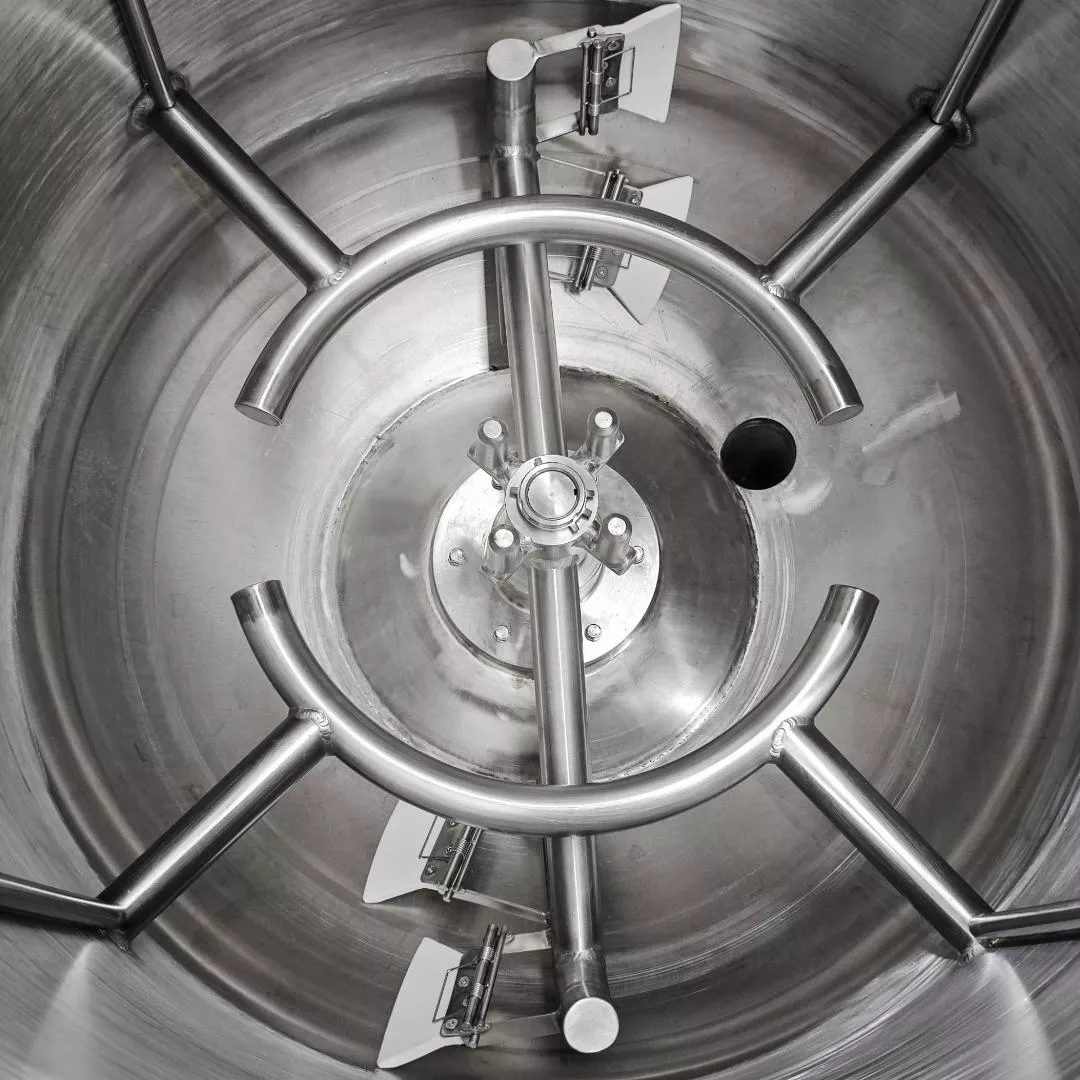

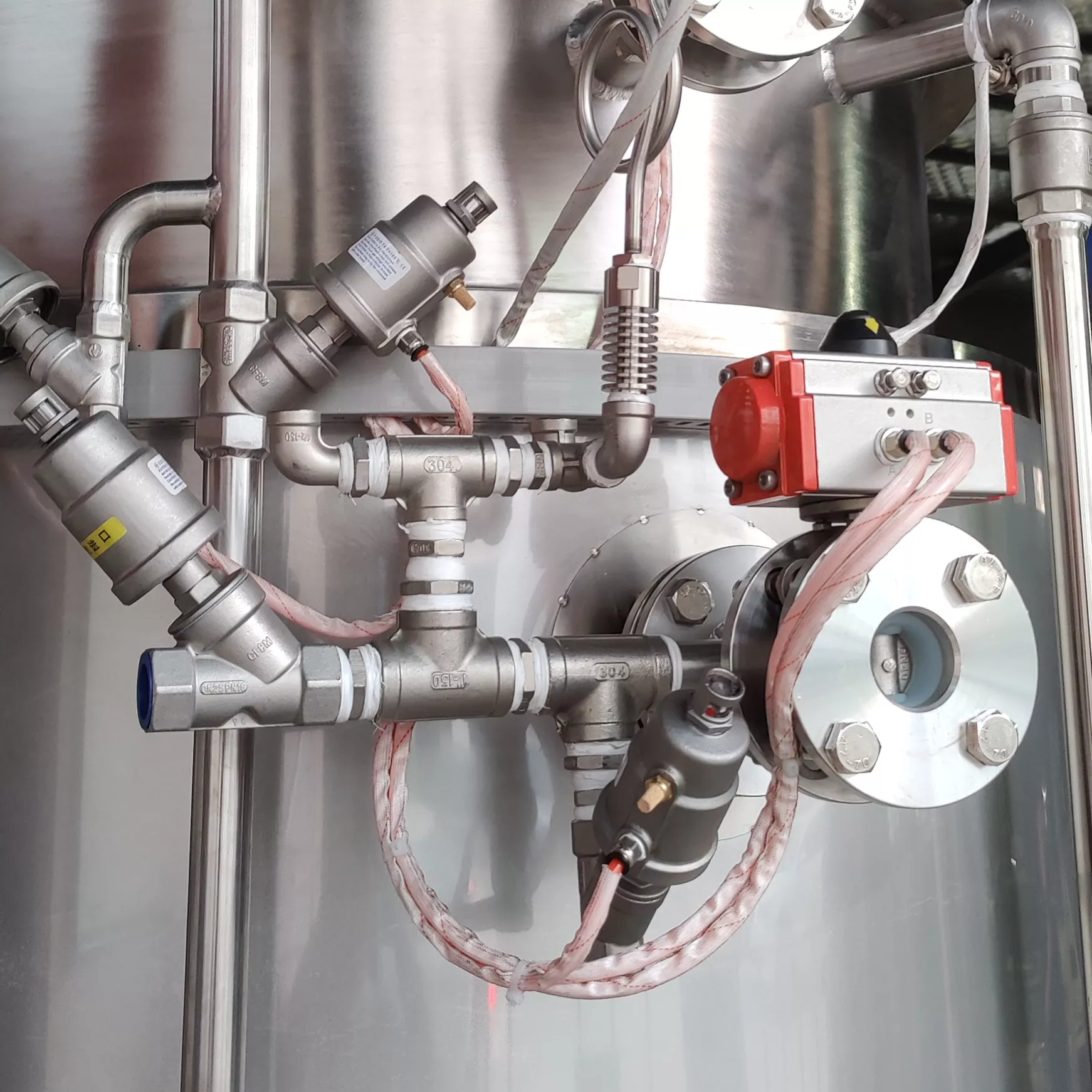

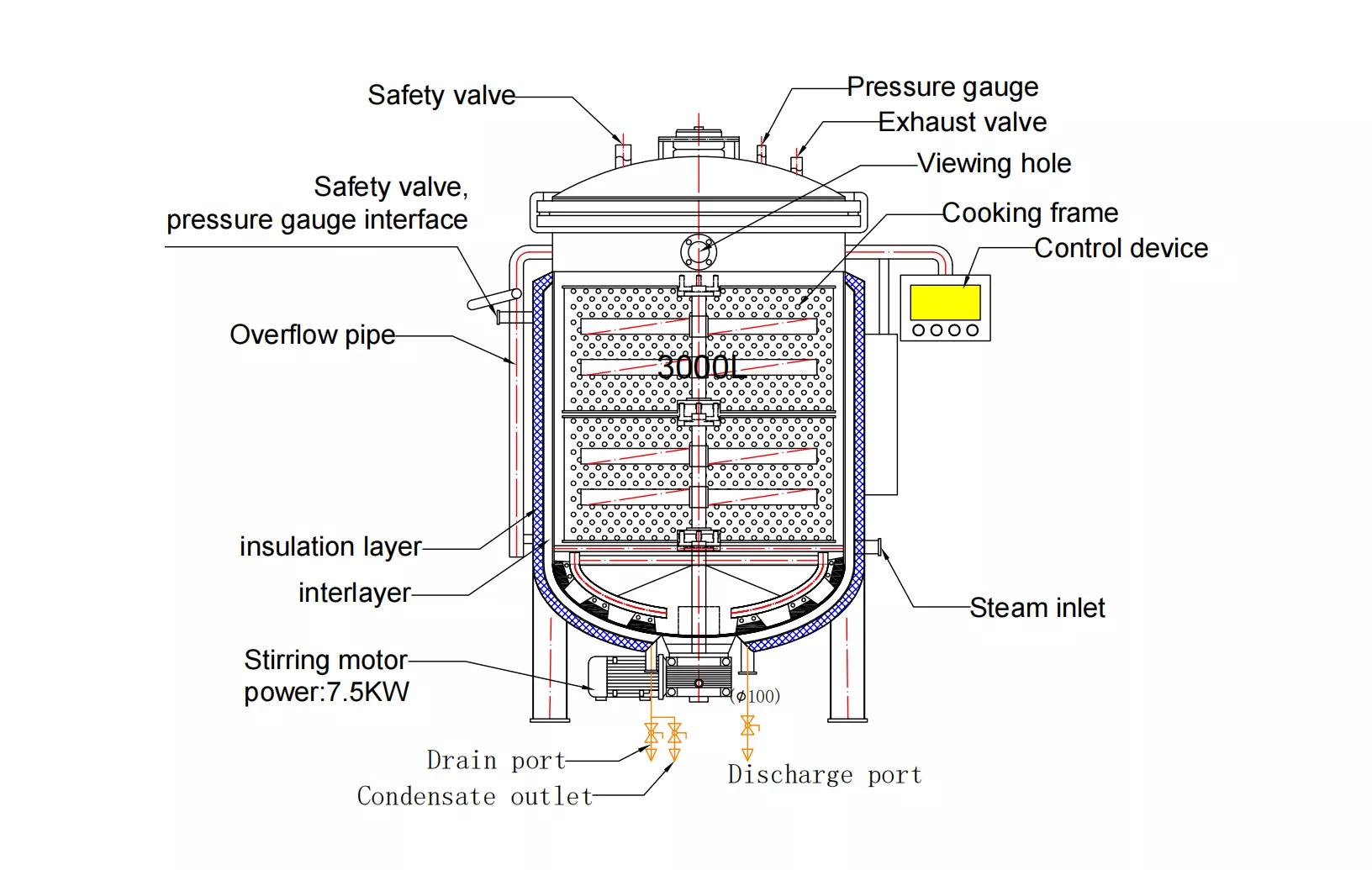

Composition : It is mainly composed of tank, agitator, water inlet and outlet pipes, heating system, and PLC control system.

Function : PLC programming intelligent control system automatically cooks and stirs to achieve standardized batch production.

Safety : The system is equipped with fault self-checking supervision measurement module and misoperation safety alarm module

Operation : The feeding and discharging adopts a frame structure, which is easy to operate

Others : The equipment size and functional configuration can be freely customized according to customer needs. If there is a problem with the whole machine accessories within one year, the company will replace it free of charge.

Whatapp：+86 181 7003 7990

Email: aloe@cnjymachine.com

Vacuum sealed pressure cooker with agitator

Applications

Vertical steam sterilizer is mainly used for steaming and cooking materials such as broth, fish soup, rice, corn, etc. On the basis of sealed steaming, a stirring function is added to make the steaming process of the materials more complete and uniform.

Features

Made of food grade 304/316 material, PLC+touch screen programming automatic control, electric heating/steam heating optional, ultra-low pressure cooking process is used in the sealed cooking process, the whole process is automatically controlled

Applications

Model	Volume (L)	Diameter （mm）	Heating power （Kw）	Heating method	Dimensions （mm）
JYH-ZLF-250	250	Φ600*800	24	Z-steam/D-electric	165014501650
JYH-ZLF-500	500	Φ800*1000	36	Z-steam/D-electric	185016501850
JYH-ZLF-1000	1000	Φ1000*1200	60	Z-steam	205018502250
JYH-ZLF-1500	1500	Φ1200*1500	/	Z-steam	205018502250
JYH-ZLF-2000	2000	Φ1300*1500	/	Z-steam	215019502350

ABOUT JINGYE MACHINERY

Jiangxi Jingye Machinery Technology Co., Ltd. is a machinery manufacturing enterprise integrating technology R&D. We specializes in the production and sales of food, beverage, pharmaceutical and chemical machinery, sanitary fluid pump valve accessories, etc., and provides process design, manufacturing and installation of food and beverage production lines, liquid milk production line sterilization equipment, etc. Commissioning, technical training and after-sales service to turnkey overall engineering services.

The main products include: autoclave, pressure cooker, mixing tanks, jacketed pots, reaction tank, plate heat exchanger, fermentation tanks, blending tanks, hot and cold cylinders, centrifugal pumps, beverage pumps, etc. Widely applicated in food and beverage category include production lines for sauces, bone broth, hummus, syrup, milk, juice, protein drinks (soy milk), fresh milk, tea drinks, eight-treasure porridge, etc.

The company takes product quality excellence as its core and service quality as its goal. While digesting and absorbing advanced domestic and foreign technologies, it combines its own advantages to continuously innovate and make progress. In line with the business purpose of "customer interests first, product quality first", we provide our customers with high-quality products and services.
