The hemispherical sealing structure has no dead angle, effectively maintains heat, reduces energy loss, and the inclined design facilitates the loading and unloading of materials. Emulsification stirring allows different materials to be fully mixed to achieve a better emulsification effect; good sealing performance prevents external pollution and ensures the stability of the vacuum environment
:
Heating part :
Jacket layer exchange heating, fast heating speed, uniform heating, and no sticking.
:
Heating part :
Electric/steam heating/gas heating can be matched according to customer needs
:
Stirring part :
frame/scraping bottom/shear emulsification can be matched according to material characteristics :

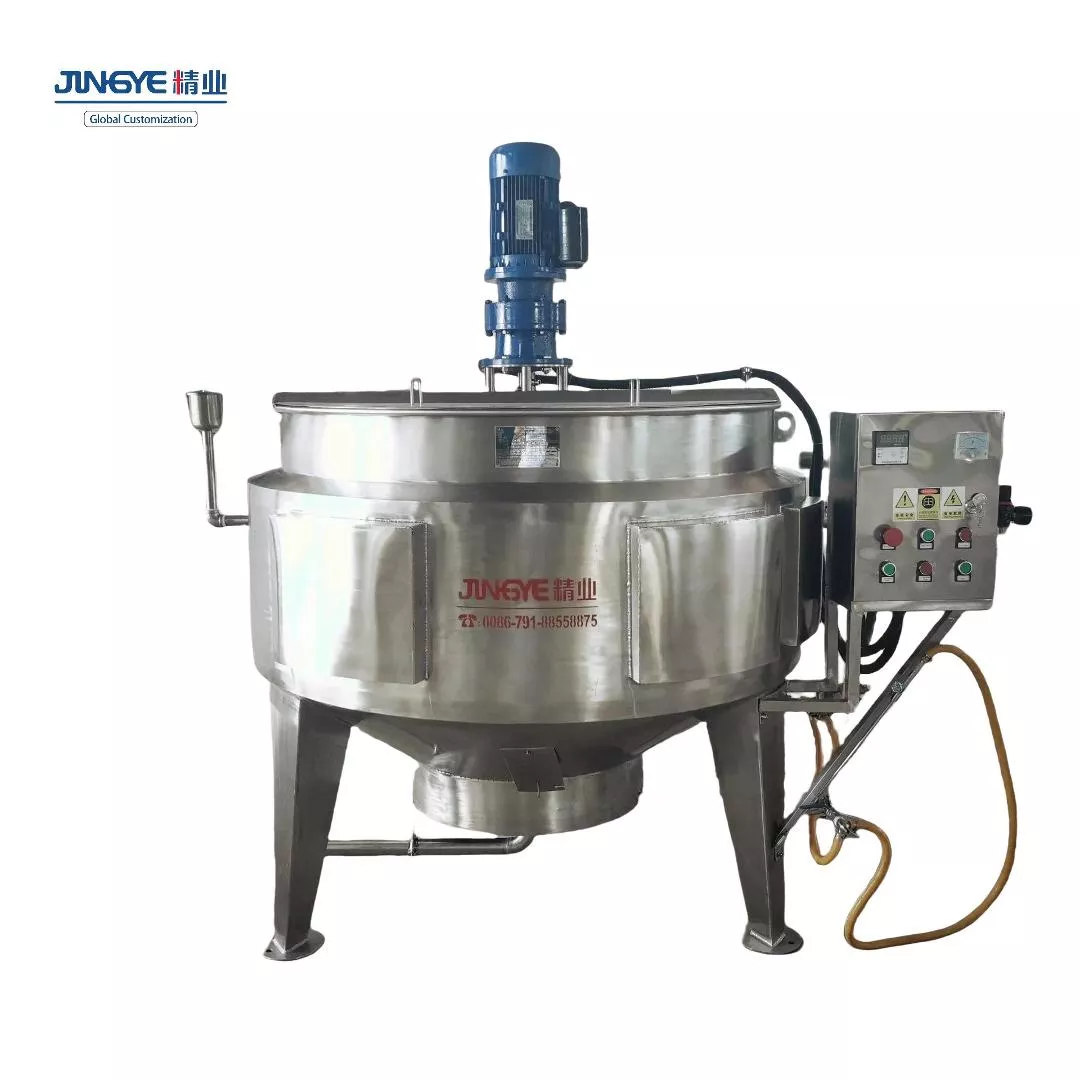

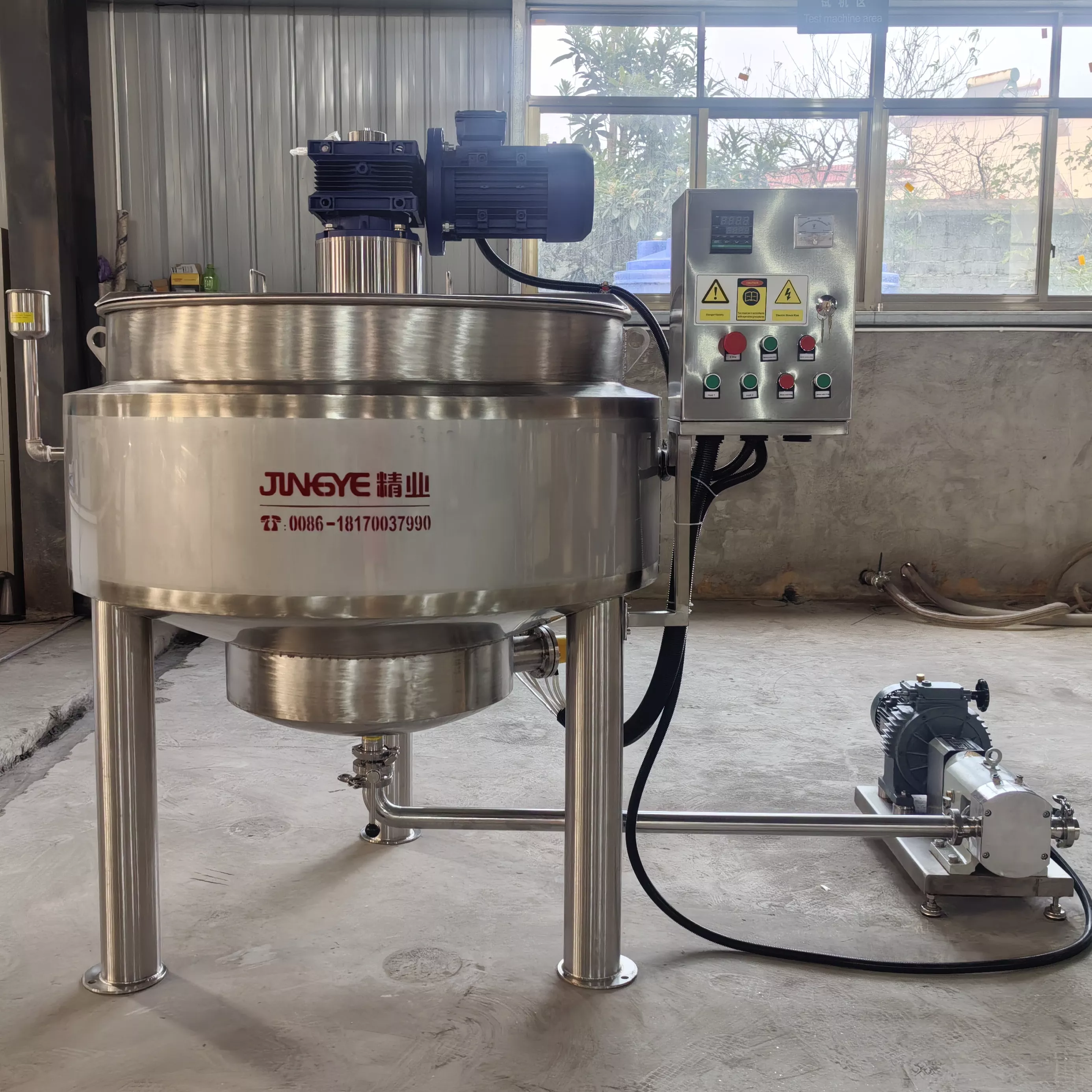

Vertical open mixing jacketed kettle is mainly used for small batches of cooked food processing and cooking in small factories, family workshops, etc., such as heating, stirring, cooking, and concentration of syrups, sauces, milk, chocolate and other materials. Hemispherical structure, heating and stirring evenly without dead ends.
Features
Made of food grade 304/316 material, jacket heat exchange heating with fast heating speed, electric heating/steam heating optional, open structure for easy observation and cleaning.
Applications
Model
Volume
(L)
Diameter
(mm)
Stirring power
(Kw)
Heating method
Dimensions
(mm)
JYH-GLJ-50
50
Φ600*450
0.75
Z-steam/D-electric
1250*950*1450
JYH-GLJ-100
100
Φ700*500
1.5
Z-steam/D-electric
1350*1050*1450
JYH-GLJ-200
200
Φ800*550
2.2
Z-steam/D-electric
1450*1150*1450
JYH-GLJ-300
300
Φ900*600
/
Z-steam/D-electric
1550*1250*1550
JYH-GLJ-400
400
Φ1000*650
/
Z-steam/D-electric
1650*1350*1650
JYH-GLJ-500
500
Φ1100*700
/
Z-steam/D-electric
1750*1450*1650
JYH-GLJ-600
600
Φ1200*750
/
Z-steam/D-electric
1850*1550*1650
